Network proposal 1 ? Far Reach Bangui ? Damara

OTHER AVAILABLE OPTIONS

quipement	Port©e (LoS)	Prix (approx.)	Photo

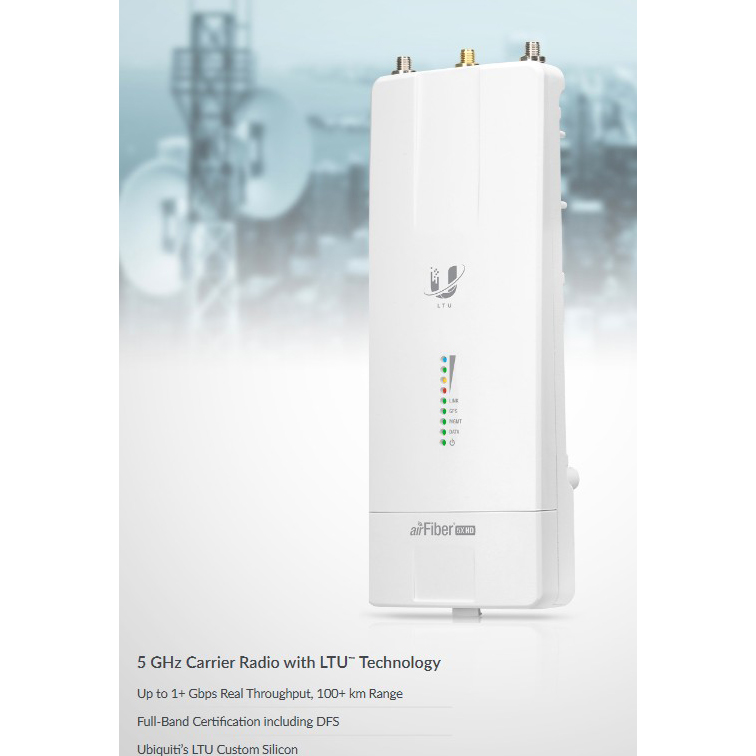

airFiber 5XHD Radio PTP (LTU)	Avec parabole 30â34 dBi : 60 km stable avec 31â34 dBi	â฿8,000 / 144000 CFA / radio
AF-5G34-S45 Antennes paraboliques 34 dBi	PTP longue distance	â฿12,000 / 216000 CFA / antenne
RocketDish RD-5G31-AC Antennes (compatible with kit) 31 dBi	PTP longue distance	â฿15,900 / 286200 CFA / antenne
airFiber Conversion kit AF-5G-OMT-S45	Pour adapter RocketDish â airFiber	â฿3,800 / 68400 CFA
AF-5G30-S45C Antennes paraboliques 30 dBi	PTP longue distance	â฿8,000 / 144000 CFA / antenne

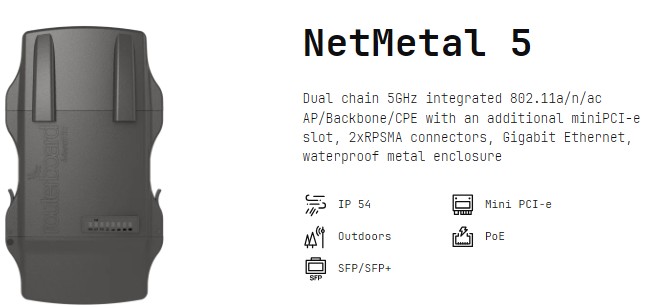

MikroTik NetMetal 5 Radio + grille 27â30 dBi	PTP longue distance 10â20 km	â฿5,800 / 104400 CFA / radio (sans antenne)
mANT30 (30 dBi) Antenne parabolique	PTP longue distance	â฿14,600 / 262800 CFA / antenne
LTU Rocket Radio 29 dBm ~1/2 prix AirFiber, ~70% perfs	PTP / PtMP ~30 km	â฿13,000 / 234000 CFA / radio

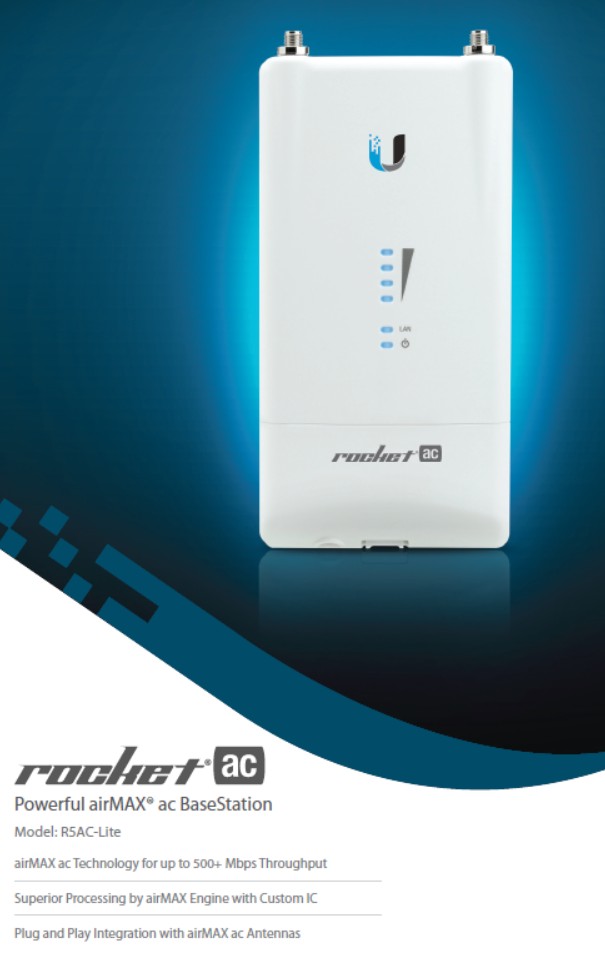

airMAX 5Ghz Rocket AC Lite - R5AC-Lite Radio 27 dBm	PTP / PtMP longue distance ~30 km	â฿9,850 / 177300 CFA / radio
airMAX PowerBeam 5AC 620 (29 dBi) Antenne parabolique	PTP longue distance ~25 km	â฿7,000 / 126000 CFA / unit©
airMAX PowerBeam 5AC 500 (27 dBi) Antenne parabolique	PTP longue distance ~15 km	â฿5,100 / 91800 CFA / unit©
TP-Link CPE710 (23 dBi) Radio + antenne panel	Radio+antenne 10â20 km	฿2,829 / 50922 CFA	â
TP-Link CPE510 (13 dBi) Radios + panneaux	Radio+antenne ~10 km	฿2,139 / 38502 CFA	â
CPE220 (12 dBi) Radios + panneaux	Radio+antenne ~5 km	â฿2,500 / 45000 CFA	â
CPE210 (9 dBi) Radios + panneaux	Radio+antenne ~3 km	â฿1,700 / 30600 CFA	â

Stations S (boitier) Station K

STATION K â Light (bo®te autonome, low-power, pour maires & citoyens)
ESP32 box (Station S Light) â microcontr´leur WiFi/BT + bo®tier r©sistant	Interface locale de base, messages, fichiers l©gers	â฿350 / 6300 CFA	â
cran LCD 2.4❠ou 2.8❠SPI (faible consommation)	Affichage statuts / menus / messages	â฿250 / 4500 CFA	â

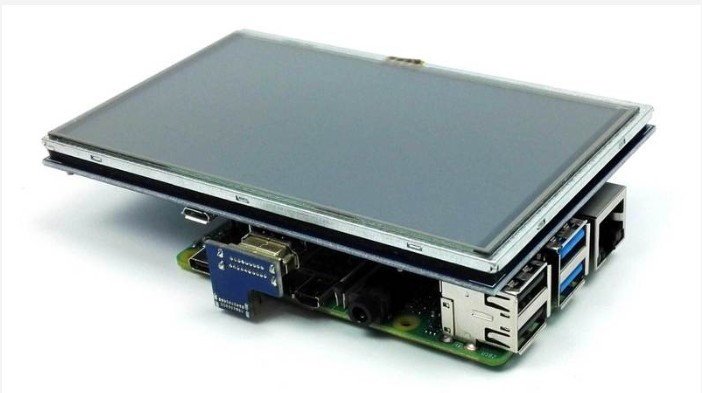

cran tactile SPI 5❠800480	Affichage lisible pour Station K (statuts, menus, saisie simple)	â฿1,399 / 25182 CFA

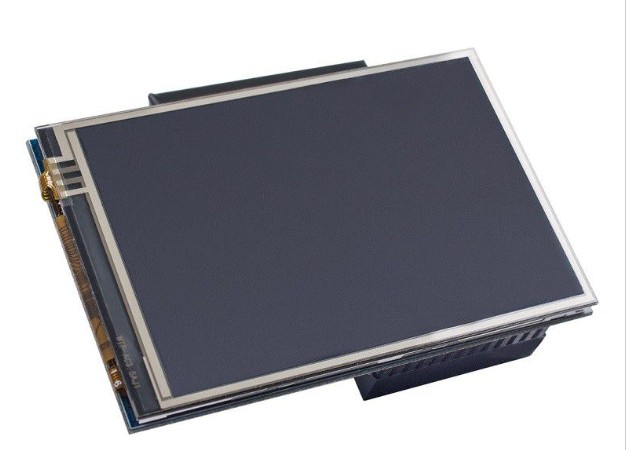

cran tactile SPI 3.5❠480320	Version compacte (statuts, menus simples)	â฿540 / 9720 CFA
Lentille âloupe rectangulaire❠14❠(  poser devant lâ©cran)	Lecture facilit©e pour anciens / faible vision	â฿80 / 1440 CFA	â
Clavier minimal 12â15 boutons tactiles GPIO (TEMU)	Saisie PIN, navigation, envoyer/recevoir messages	â฿120 / 2160 CFA	â

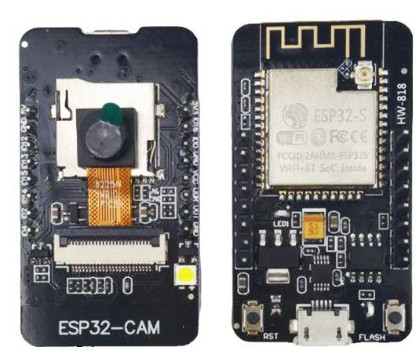

Cam©ra int©gr©e type ESP32-CAM (OV2640, USB)	Vid©o basse conso (quelques fps) pour messages/alerte	â฿500 / 9000 CFA
Micro PCB MEMS + pr©ampli int©gr©	Audio 16-bit / faible consommation	â฿120 / 2160 CFA	â
Carte SD 16â32 GB classe A1	Stockage de messages, fichiers, journaux, cache	â฿180 / 3240 CFA	â
Batterie Li-ion 18650 + module solaire (10â20W)	Autonomie totale (mªme sans r©seau)	â฿250 / 4500 CFA + ฿300 / 5400 CFA	â
STATION K â Full (avec Raspberry Pi & stockage SSD)
Raspberry Pi 4 ou Pi 5 (4 GB RAM)	Serveur local, NOC miniature, cache, stockage, interface USB	â฿3,800 / 68400 CFA	â
OS : Linux (Raspberry Pi OS) + LXDE + LibreOffice	Bureau l©ger, traitement de texte/tableur pour Station K	Libre (pr©install© ou   ajouter)	â
SSD 128â256 GB + bo®tier USB 3.0	Stockage fiable (©vite lâusure rapide des SDcards)	â฿700 / 12600 CFA + ฿200 / 3600 CFA	â
cran HDMI 5❠ou 7❠basse consommation	Affichage bo®te messages, fichiers, sch©mas, photos police	â฿850 / 15300 CFAâ1,200	â
Cam©ra analogique Caddx Ratel 2 Nano (vision nocturne)	Visioconf©rence 8 fps / basse luminosit©	â฿800 / 14400 CFA
Micro USB + petit ampli	Voix 16-bit, tr¨s faible d©bit	â฿150 / 2700 CFA	â
Clavier 12â15 touches (GPIO / USB compact)	Saisie PIN, validation, commandes dâenvoi	â฿120 / 2160 CFAâ200	â
Batterie 12V + BMS + panneau solaire 20â40W	Autonomie compl¨te, mode âsurvie❠hors r©seau	â฿1,000 / 18000 CFAâ1,500	â
Bo®tier robuste (ABS/Polycarbonate)	Protection pluie/chaleur, compartiment SSD + RPi	â฿180 / 3240 CFAâ250	â
STATION H â Recommandation pour petits relais (links courts & villages)
Ubiquiti PowerBeam 5AC 500 (27 dBi)	Liens 5â15 km, excellent pour relais âH❠©conomiques	â฿5,100 / 91800 CFA	â
Ubiquiti PowerBeam 5AC 620 (29 dBi)	Liens 10â25 km, forte p©n©tration, bonne marge pluie	â฿7,000 / 126000 CFA	â
AP local/omni (Ubiquiti airMAX / UniFi)	WiFi local village / mairie	â฿3,000 / 54000 CFA	â
Kit solaire + batterie + m¢t	Alimentation autonome	â฿25,000 / 450000 CFA	â
STATION S â Bo®tier citoyen (portable)
ESP32 (Station S) + ©cran 3.5❠SPI par d©faut + clavier 15 touches	Messagerie / fichiers l©gers, alerte, affichage compact	â฿1,010 / 18180 CFA (ESP32 350 + ©cran 540 + clavier 120)	â
Option : ©cran tactile 5❠(sur lâautre face, d©tachable)	Mode confort (saisie tactile, lecture), conserve le clavier 15 touches en secours	â฿1,399 / 25182 CFA	â
GY-302 BH1750FVI (capteur lumi?re ambiante I2C)	Ajuste automatiquement la luminosit? du r?tro?clairage selon la lumi?re ambiante	??50 / 900 CFA	?
STATION M â Mobile (smartphone)
Application mobile (Termux script, futur APK)	Messagerie/healthcheck vers Station K/H ; peut servir de ferry opportuniste	â	â
Option clavier tactile	Clavier logiciel (2.8â5â) pour saisie rapide ; garder 15 touches physiques en secours	â	â
BACKHAUL LONGUE DISTANCE â Choix standardis© (max performance)
Ubiquiti airFiber 5XHD	Radio PTP haute capacit© (~700 Mbps), p©n¨tre feuillage l©ger	â฿8,000 / 144000 CFA	â
AF-5G34-S45 (34 dBi)	Dish longue distance, 20â60+ km, ©norme marge de pluie	â฿12,000 / 216000 CFA	â
Kit PoE + c¢bles blind©s	Backhaul propre & stable	â฿1,200 / 21600 CFA	â
Structure / m¢t / haubanage	Captation optimale sur collines	â฿15,000 / 270000 CFAâ25,000	â
Caddx Ratel 2 Nano (vision nocturne)	Module cam©ra faible lumi¨re (peut ©quiper Stations K/H/S pour surveillance)	â฿800 / 14400 CFA

Packs solaires standard (sans co»t de m¢t â bambou / arbres locaux)

Pack	Usage type	Composition	Prix approx.
Pack S1 Petit relais / Station K light	- 1 PowerBeam ou CPE - 1 Station K light (ESP32 + LCD) - Faible conso, pas de RPi	- 1 panneau 100W 12V mono (~฿700 / 12600 CFA) - 1 contr´leur PWM 20A 12/24V (~฿250 / 4500 CFA) - 1 batterie GEL 12V 100Ah (~฿4,200 / 75600 CFA) - C¢bles + fusibles + bo®tier (~฿400 / 7200 CFA)	â฿5,500 / 99000 CFA
Pack S2 Relais H / petite Station K full	- 1â2 radios (PowerBeam 500/620) - 1 AP local - 1 Station K un peu plus fournie - Conso moyenne	- 2 panneaux 100W 12V (â200W, ~฿1,400 / 25200 CFA) - 1 contr´leur PWM 20A (~฿250 / 4500 CFA) - 1 batterie GEL 12V 100Ah (~฿4,200 / 75600 CFA) - C¢bles + fusibles + bo®tier (~฿500 / 9000 CFA)	â฿6,500 / 117000 CFA
Pack S3 Gros relais backhaul (AF-5XHD + 34 dBi)	- 1 lien airFiber 5XHD (ou 2 c´t©s au mªme site) - 1 AP local + 1 PowerBeam branche - Conso plus ©lev©e, besoin de marge pluie	- 3 panneaux 100W 12V (â300W, ~฿2,100 / 37800 CFA) - 1 contr´leur MPPT 30A correct (~฿2,500 / 45000 CFA) - 2 batteries GEL 12V 100Ah (~฿8,400 / 151200 CFA) - C¢bles + fusibles + bo®tier (~฿800 / 14400 CFA)	â฿13,500 / 243000 CFAâ14,000

Ubiquity:

- see link quality in real time,
- update firmware remotely,
- reboot radios,
- view signal graphs,
- detect failures,
- follow traffic flow per hop,
- monitor throughput on each direction,
- receive alerts (email/SMS/Telegram), - run diagnostics,
- trace bottlenecks,
- visualize the entire backbone live on a map.
- This is exactly what UISP / UNMS is made for.

1. You get a complete live map of your entire backbone

UISP shows:
- All relays (PK12, Bomb©r©, Imoro, Damara Gateâ¦)
- All links (PTP1, PTP2, PTP3â¦)
- Color-coded link health
- - Traffic in both directions
- Alerts when even one tiny thing goes wrong
You literally see:
green â OK
orange â warning (signal drop, noise, weather)
red â link down
- You can manage your whole country-wide network from one screen.

2. Remote management features (no need to climb the hills)

Every Ubiquiti radio (airFiber, LTU, airMAX) supports:
- Remote WebUI access
- Remote SSH
- Remote config backup/restore
- Remote firmware upgrade
- Remote antenna alignment tool
- Real-time spectrum analyzer (remote!)
- Remote link quality / SNR graphs
- Remote logs

You only need:
- a management network (simple VLAN or flat network)
- one UISP controller (can be on a Raspberry Pi, a small VM, or in the cloud)

3. Remote OAM (Operations, Administration, Maintenance)

With Ubiquiti airFiber / LTU, you can:
- Identify problems remotely:
- bad alignment
- water in cable
- power issues
- interference
- fading due to weather
- hardware aging
-speed degradation

Fix problems remotely:
- change channels
- change power
- lock modulation
- adjust bandwidth
- reboot remotely
- switch link mode (SERIAL / SISO / MIMO)
- No climbing.
- No travel.
- You control the entire national backbone from Bangui or from Thailand if you want.
4. Traffic management from one central point
UISP gives:
- per-hop bandwidth
- real-time throughput graphs
- per-site latency
- packet loss
- link utilization
- queue monitoring
- interface stats
- alerts when traffic spikes or drops
- historical graphs (hour / day / week / month)
- You have a full NOC dashboard.

5. Two ways to operate âremote management❠in CAR

Option 1 â Local UISP server in Bangui
- Run it on a small server or Raspberry Pi
- All radios report to it
- Accessible via VPN

Option 2 â Cloud UISP (recommended for you)
- Install UISP on a cloud server (DigitalOcean / AWS)
- All radios in CAR report to it
- You manage everything from C.A.R., Thailand or France (travelling)
- No central hardware
- Independent of local power cuts

Possible to install a small âstation K mini-NOC❠at each relay with Raspberry Pi for even more visibility
