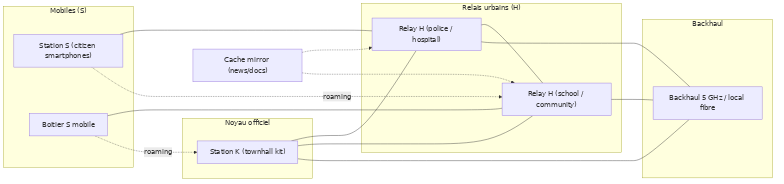

ASCII
Nud central (ville) â contenus + collecte cha®ne
|
| (C-pro / backhaul)
v
RELAIS PRO / KIT K (mairie)
- antennes RX/TX
- SSD contenus + copie cha®ne
- tablette/PC maire
|\
| \-- H : Bo®tier HOME (antenne dir., synchro chain)
| \
| \-- C-port portable (panel antenne, synchro)
|
v (Wi-Fi local)
S : Bo®tier STANDARD (ESP32, µSD, identit©, actions)
Stations & mat©riel
- S Standard (6â8 â¬) : ESP32, µSD, identit© locale. faire provisioning cl©.
- H Home (15â35 â¬) : S + antenne dir. (CPE/PCB u.FL). Info Foxeer Omni 2.4 dispo.
- K Relais (80â120 â¬) : routeur OpenWrt 2.4 + SSD 64â128 Go, option solaire 20â30 W + 7Ah. faire bo®te outdoor.
- Backhaul COM (50â70 â¬) : paire NanoStation Loco M2/M5 (2â10 km LoS). Info r©glementations locales.
- Terminal maire (50â70 â¬) : tablette 8", cl© USB blockchain, bo®tier S identit©. faire UX vote hors ligne.
Points pr©ciser
- faire Cartographier multi-village (lien AâB), classes QoS.
- faire Diagramme physique (hauteur m¢ts, distances).
- Info Mesures r©elles CPE210/NanoStation.
Usage
- Service de proximit© (WiâFi local, cache docs, forum maires).
- Backhaul mod©r© entre K-stations (2â10 km LoS).
- Point dâentr©e pour vecteur V2 (bubblejump) et V1 (USB/SD).
